C2DBaseSet Class Reference

A set of geometric entities of different types held as pointers to a base class geometric entity. More...

#include <2DBaseSet.h>

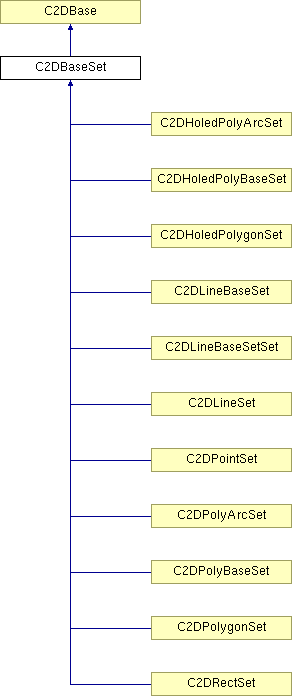

Inheritance diagram for C2DBaseSet:

List of all members.

Public Member Functions
	C2DBaseSet ()
	Constructor.
	~C2DBaseSet ()
	Constructor.
void	DeleteAll (void)
	Deletes all the pointers and removes them.
void	Add (C2DBase *NewItem)
	Adds a new pointer and takes responsibility for it.
void	DeleteAndSet (int nIndx, C2DBase *NewItem)
	Deletes the current item and sets the pointer to be the new one.
C2DBase *	ExtractAndSet (int nIndx, C2DBase *NewItem)
	Extracts the current item and sets the pointer to be the new one.
unsigned int	size (void) const
	returns the size
C2DBase *	GetAt (int nIndx)
	Returns the value at the point given.
const C2DBase *	GetAt (int nIndx) const
	Returns the value at the point given.
C2DBase &	operator[] (int nIndx)
	Returns a reference to the value at the point given.
const C2DBase &	operator[] (int nIndx) const
	Returns a reference to the value at the point given.
C2DBase *	GetLast (void)
	Returns a pointer to the last item.
void	DeleteAt (unsigned int nIndx)
	Deletion.
void	DeleteLast (void)
	Deletion of the last.
C2DBase *	ExtractAt (unsigned int nIndx)
	Extracts the pointer passing deletion responsibility over.
C2DBase *	ExtractLast (void)
	Extracts the pointer passing deletion responsibility over.
void	InsertAt (unsigned int nIndx, C2DBase *NewItem)
	Insertion.
void	InsertAt (unsigned int nIndx, C2DBaseSet &Other)
	Insertion of another array.
void	ReverseOrder (void)
	Reverses the order.
void	operator<< (C2DBaseSet &Other)
	Passes all the pointers from the Other into this.
void	operator<< (C2DBase *NewItem)
	Adds a new pointer and takes responsibility for it.
void	Move (const C2DVector &Vector)
	Moves the collection by the vector provided.
void	RotateToRight (double dAng, const C2DPoint &Origin)
	Rotates the collection by the angles, around the origin.
void	Grow (double dFactor, const C2DPoint &Origin)
	Grows the collection by the factor, around the origin.
void	Reflect (const C2DPoint &Point)
	Reflects the collection in the point given.
void	Reflect (const C2DLine &Line)
	Reflects throught the line provided.
double	Distance (const C2DPoint &Point) const
	Calculcates the minimum distance, of the whole collection from the point.
void	SortByDistance (const C2DPoint &pt, bool bAscending=true)
	Sorts the collection by the distance from the point.
void	GetBoundingRect (C2DRect &Rect) const
	Returns the bounding rectangle for the whole collection.
void	SnapToGrid (void)
	Snaps all in the collection to the grid. see CGrid.
void	Project (const C2DLine &Line, CInterval &Interval) const
	Projects the whole set onto the line given.
void	Project (const C2DVector &Vector, CInterval &Interval) const
	Projects the whole set onto the vector given.
Protected Attributes
void *	m_Data
	This is a pointer to the data which is defined is the constructor.

---

Detailed Description

A set of geometric entities of different types held as pointers to a base class geometric entity.

---------------------------------------------------------------------------

---

Constructor & Destructor Documentation

C2DBaseSet::C2DBaseSet (   )

Constructor. -------------------------------------------------------------------------- C2DBaseSet::C2DBaseSet ---------------------------------------------------------------------------

C2DBaseSet::~C2DBaseSet (   )

Constructor. -------------------------------------------------------------------------- C2DBaseSet::~C2DBaseSet ---------------------------------------------------------------------------

---

Member Function Documentation

void C2DBaseSet::Add (  C2DBase *  NewItem  )

Adds a new pointer and takes responsibility for it. -------------------------------------------------------------------------- C2DBaseSet::Add ---------------------------------------------------------------------------

void C2DBaseSet::DeleteAll (  void   )

Deletes all the pointers and removes them. -------------------------------------------------------------------------- C2DBaseSet::DeleteAll ---------------------------------------------------------------------------

void C2DBaseSet::DeleteAndSet (  int  nIndx, C2DBase *  NewItem )

Deletes the current item and sets the pointer to be the new one. -------------------------------------------------------------------------- C2DBaseSet::DeleteAndSet ---------------------------------------------------------------------------

void C2DBaseSet::DeleteAt (  unsigned int  nIndx  )

Deletion. -------------------------------------------------------------------------- C2DBaseSet::DeleteAt ---------------------------------------------------------------------------

void C2DBaseSet::DeleteLast (  void   )

Deletion of the last. -------------------------------------------------------------------------- C2DBaseSet::DeleteLast ---------------------------------------------------------------------------

double C2DBaseSet::Distance (  const C2DPoint &  Point  )  const [virtual]

Calculcates the minimum distance, of the whole collection from the point. -------------------------------------------------------------------------- C2DBaseSet::Distance --------------------------------------------------------------------------- Implements C2DBase.

C2DBase * C2DBaseSet::ExtractAndSet (  int  nIndx, C2DBase *  NewItem )

Extracts the current item and sets the pointer to be the new one. -------------------------------------------------------------------------- C2DBaseSet::ExtractAndSet ---------------------------------------------------------------------------

C2DBase * C2DBaseSet::ExtractAt (  unsigned int  nIndx  )

Extracts the pointer passing deletion responsibility over. -------------------------------------------------------------------------- C2DBaseSet::ExtractAt --------------------------------------------------------------------------- Reimplemented in C2DHoledPolyArcSet, C2DHoledPolyBaseSet, C2DHoledPolygonSet, C2DLineBaseSet, C2DLineBaseSetSet, C2DLineSet, C2DPointSet, C2DPolyArcSet, C2DPolyBaseSet, C2DPolygonSet, and C2DRectSet.

C2DBase * C2DBaseSet::ExtractLast (  void   )

Extracts the pointer passing deletion responsibility over. -------------------------------------------------------------------------- C2DBaseSet::ExtractLast --------------------------------------------------------------------------- Reimplemented in C2DHoledPolyArcSet, C2DHoledPolyBaseSet, C2DHoledPolygonSet, C2DLineBaseSet, C2DLineBaseSetSet, C2DLineSet, C2DPointSet, C2DPolyArcSet, C2DPolyBaseSet, C2DPolygonSet, and C2DRectSet.

const C2DBase * C2DBaseSet::GetAt (  int  nIndx  )  const

Returns the value at the point given. -------------------------------------------------------------------------- C2DBaseSet::GetAt --------------------------------------------------------------------------- Reimplemented in C2DHoledPolyArcSet, C2DHoledPolyBaseSet, C2DHoledPolygonSet, C2DLineBaseSet, C2DLineBaseSetSet, C2DLineSet, C2DPointSet, C2DPolyArcSet, C2DPolyBaseSet, C2DPolygonSet, and C2DRectSet.

C2DBase * C2DBaseSet::GetAt (  int  nIndx  )

Returns the value at the point given. -------------------------------------------------------------------------- C2DBaseSet::GetAt --------------------------------------------------------------------------- Reimplemented in C2DHoledPolyArcSet, C2DHoledPolyBaseSet, C2DHoledPolygonSet, C2DLineBaseSet, C2DLineBaseSetSet, C2DLineSet, C2DPointSet, C2DPolyArcSet, C2DPolyBaseSet, C2DPolygonSet, and C2DRectSet.

void C2DBaseSet::GetBoundingRect (  C2DRect &  Rect  )  const [virtual]

Returns the bounding rectangle for the whole collection. -------------------------------------------------------------------------- C2DBaseSet::GetBoundingRect --------------------------------------------------------------------------- Implements C2DBase. Reimplemented in C2DPointSet.

C2DBase * C2DBaseSet::GetLast (  void   )

Returns a pointer to the last item. -------------------------------------------------------------------------- C2DBaseSet::GetLast --------------------------------------------------------------------------- Reimplemented in C2DHoledPolyArcSet, C2DHoledPolyBaseSet, C2DHoledPolygonSet, C2DLineBaseSet, C2DLineBaseSetSet, C2DLineSet, C2DPointSet, C2DPolyArcSet, C2DPolyBaseSet, C2DPolygonSet, and C2DRectSet.

void C2DBaseSet::Grow (  double  dFactor, const C2DPoint &  Origin )  [virtual]

Grows the collection by the factor, around the origin. -------------------------------------------------------------------------- C2DBaseSet::Grow --------------------------------------------------------------------------- Implements C2DBase.

void C2DBaseSet::InsertAt (  unsigned int  nIndx, C2DBaseSet &  Other )

Insertion of another array. -------------------------------------------------------------------------- C2DBaseSet::InsertAt ---------------------------------------------------------------------------

void C2DBaseSet::InsertAt (  unsigned int  nIndx, C2DBase *  NewItem )

Insertion. -------------------------------------------------------------------------- C2DBaseSet::InsertAt ---------------------------------------------------------------------------

void C2DBaseSet::Move (  const C2DVector &  Vector  )  [virtual]

Moves the collection by the vector provided. -------------------------------------------------------------------------- C2DBaseSet::Move --------------------------------------------------------------------------- Implements C2DBase.

void C2DBaseSet::operator<< (  C2DBase *  pNewItem  )

Adds a new pointer and takes responsibility for it. -------------------------------------------------------------------------- C2DBaseSet::operator<< ---------------------------------------------------------------------------

void C2DBaseSet::operator<< (  C2DBaseSet &  Other  )

Passes all the pointers from the Other into this. -------------------------------------------------------------------------- C2DBaseSet::operator<< --------------------------------------------------------------------------- Reimplemented in C2DHoledPolyArcSet, C2DHoledPolyBaseSet, C2DHoledPolygonSet, C2DLineBaseSet, C2DLineSet, C2DPointSet, C2DPolyArcSet, C2DPolyBaseSet, C2DPolygonSet, and C2DRectSet.

const C2DBase & C2DBaseSet::operator[] (  int  nIndx  )  const

Returns a reference to the value at the point given. -------------------------------------------------------------------------- C2DBaseSet::operator[] --------------------------------------------------------------------------- Reimplemented in C2DHoledPolyArcSet, C2DHoledPolyBaseSet, C2DHoledPolygonSet, C2DLineBaseSet, C2DLineBaseSetSet, C2DLineSet, C2DPointSet, C2DPolyArcSet, C2DPolyBaseSet, C2DPolygonSet, and C2DRectSet.

C2DBase & C2DBaseSet::operator[] (  int  nIndx  )

Returns a reference to the value at the point given. -------------------------------------------------------------------------- C2DBaseSet::operator[] --------------------------------------------------------------------------- Reimplemented in C2DHoledPolyArcSet, C2DHoledPolyBaseSet, C2DHoledPolygonSet, C2DLineBaseSet, C2DLineBaseSetSet, C2DLineSet, C2DPointSet, C2DPolyArcSet, C2DPolyBaseSet, C2DPolygonSet, and C2DRectSet.

void C2DBaseSet::Project (  const C2DVector &  Vector, CInterval &  Interval )  const [virtual]

Projects the whole set onto the vector given. -------------------------------------------------------------------------- C2DBaseSet::Project --------------------------------------------------------------------------- Implements C2DBase.

void C2DBaseSet::Project (  const C2DLine &  Line, CInterval &  Interval )  const [virtual]

Projects the whole set onto the line given. -------------------------------------------------------------------------- C2DBaseSet::Project --------------------------------------------------------------------------- Implements C2DBase.

void C2DBaseSet::Reflect (  const C2DLine &  Line  )  [virtual]

Reflects throught the line provided. -------------------------------------------------------------------------- C2DBaseSet::Reflect --------------------------------------------------------------------------- Implements C2DBase.

void C2DBaseSet::Reflect (  const C2DPoint &  Point  )  [virtual]

Reflects the collection in the point given. -------------------------------------------------------------------------- C2DBaseSet::Reflect --------------------------------------------------------------------------- Implements C2DBase.

void C2DBaseSet::ReverseOrder (  void   )

Reverses the order. -------------------------------------------------------------------------- C2DBaseSet::ReverseOrder ---------------------------------------------------------------------------

void C2DBaseSet::RotateToRight (  double  dAng, const C2DPoint &  Origin )  [virtual]

Rotates the collection by the angles, around the origin. -------------------------------------------------------------------------- C2DBaseSet::RotateToRight --------------------------------------------------------------------------- Implements C2DBase.

unsigned int C2DBaseSet::size (  void   )  const

returns the size -------------------------------------------------------------------------- C2DBaseSet::size ---------------------------------------------------------------------------

void C2DBaseSet::SnapToGrid (  void   )  [virtual]

Snaps all in the collection to the grid. see CGrid. -------------------------------------------------------------------------- C2DBaseSet::SnapToGrid --------------------------------------------------------------------------- Implements C2DBase.

void C2DBaseSet::SortByDistance (  const C2DPoint &  pt, bool  bAscending = true )

Sorts the collection by the distance from the point. -------------------------------------------------------------------------- C2DBaseSet::SortByDistance ---------------------------------------------------------------------------

---

The documentation for this class was generated from the following files:

• C:/GeoLib 3.0/GeoLib 3.0/GeoLib Source/2DBaseSet.h
• C:/GeoLib 3.0/GeoLib 3.0/GeoLib Source/2DBaseSet.cpp

---
